Feilhauer Aircraft Sales - Our current offers
Overview
Base data | Type: | Helicopter (Turbine) | Make: | Bell | Model: | 212 | Year built: | 1978 | Registration No.: | A7-HBU | Serial No.: | 30902 | Location: | Qatar, Doha | Total Time (TTAF): | 22501 h | Price: | on request | Full details |
Seller |
Feilhauer Aircraft Sales P.O. Box 87 1217 Meyrin 1 Switzerland
Tel: +41 22 782 98 00 Fax: +41 22 782 98 11 |
Contact seller |
|
|
|
Full Details
Base data | Type: | Helicopter (Turbine) | Make: | Bell | Model: | 212 | Year built: | 1978 | Registration No.: | A7-HBU | Serial No.: | 30902 | Location: | Qatar, Doha | Total Time (TTAF): | 22501 h | Price: | on request |
Engine(s) | Number of engines: | 2 | Make/Model: | Pratt & Whitney PT6T-3B |
Description/Details of engines | Engine N° 1 : TSO : 766,30 Hours
Engine N° 2 : TSO : 1768,24 Hours |
Avionics | - Dual Panel Cockpit Instruments
- Two King KTR-905 VHF Radios
- Two King KDF-805 ADF
- King KNR-630 VOR/ILS
- King KDM-705 DME
- King MKR-675 Marker
- King KXP-755 Transponder with Mode C
- Sperry AA300 & AVAD Radio Altimeter
- RS-811A Weather Radar
- Garmin 165 Area Navigational Aid GPS
- Cockpit Voice Recorder
- NAT 150/450 FM Comm
- Flight Crew / Passenger Intercom System
- ELT 406 |
Equipment | - Dual Controls
- Rotor Brake
- Undersling Load Hook and Role Equipment Provisions
- Stretcher Provisions
- Emergency Flotation Gear
- 2 x 10 man Reversible Liferafts and Survival Packs
- Crew Lifejackets with Emergency Sarbe Beacons
- 13x Passenger Lifejackets
- Two Fire Extinguishers
- First Aid Kit |
Exterior | - Paint : White, Red, Green and Brown |
Inspection Status | - Helicopter is unserviceable, due for D-Check and currently under Preservation.
Description / TSN-TSO / Time Remaining
- Main Rotor Blade / --- / Removed as Serviceable
- Main Rotor Blade / --- / Removed as Serviceable
- Main Rotor Hub Assy / 276,80 / 2.023,20
- Main Rotor Mast / 987,70 / 4.012.30
- Main Transmission / 1.066,63 / 1.933,37
- Scissor and Sleeve / --- / Removed
- Swashplate and Support / --- / Removed
- 42° Gearbox / --- / Removed
- 90° Gearbox / 561,00 / 2.439,00
- Tail Rotor Hub / 532,20 / 567,80
- Tail Rotor Blade / --- / Removed
- Tail Rotor Blade / --- / Removed
- Power Section 1 / 10.710,24 - 766,30 / 4.733,70
- Power Section 2 / 10.741,00 - 1.768,24 / 3.731,60
- Combining Gearbox / 3.275,40 / 2.724,60 |
Other remarks | - If the components which have been removed are required, they can be installed and price adjusted accordingly. |

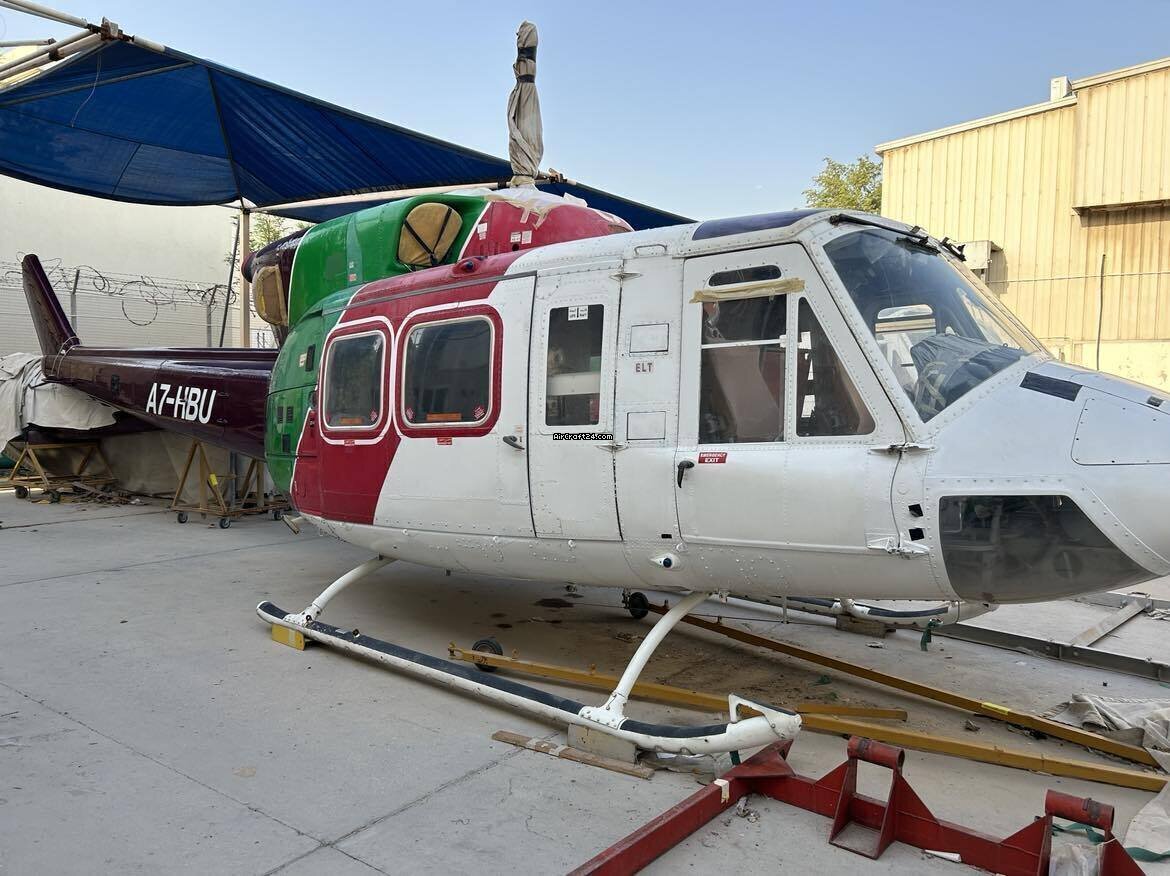

Pictures
